About this item

Item Name: Chop Saw

Item Name: Compound miter saw

Brand: Dewalt

Model Number: DWS780-GB

Colour: YellowPower Input: 1675 Watts

Power Output: 960 Watt

Blade Speed: 1900 – 3800 rpm

Blade Diameter: 305 mm

Blade Bore: 30 mm

Bevel Capacity: 49/49°

Mitre Capacity [right/left]: 60/50°

Cutting Capacity at 90ø/45ø (W x H): 211 x 112 mm

Cutting Capacity at 90ø/90ø (W x H): 303 x110 mm

Cutting Capacity at 90ø/90ø (W x H): 345 x 76 mm

Cutting Capacity at 45ø/90ø (W x H): 268 x 63 mm

Cutting Capacity at 45ø/90ø (W x H): 345 x 44 mm

Cutting Capacity at 90ø/45ø (W x H): 244 x 76 mm

Max. Cutting Capacity at 45ø/45ø: 212 x 76 mm

Max. Depth of Cut [Saws]: 170 mm

Weight: 24.8 kg

Depth: 470 mm

Length: 770 mm

Height: 396 mm

Hand/Arm Vibration – Cutting Wood: 2.5 m/s²

Uncertainty K 1 (Vibration): 1.5 m/s²

Sound Power: 100 dB(A)

Sound Power Uncertainty: 3 dB(A)

Sound Pressure: 93 dB(A)

Sound Pressure Uncertainty: 3 dB(A)

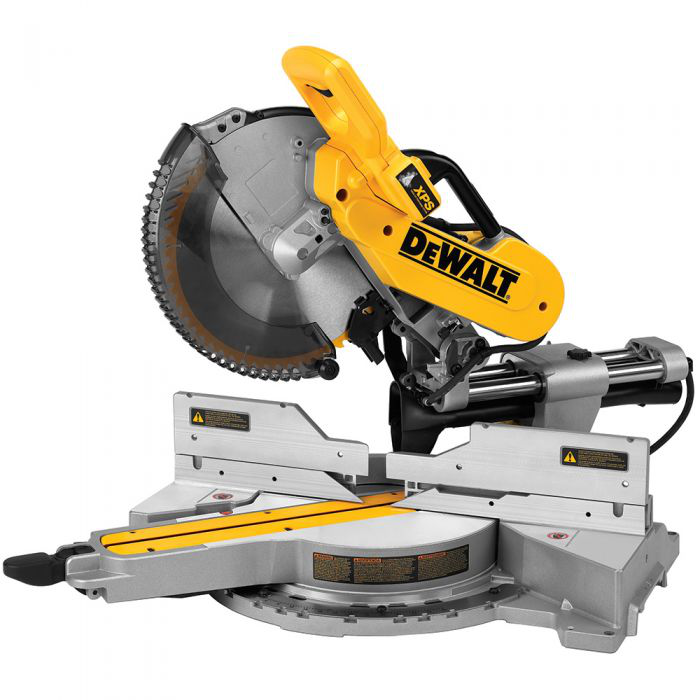

The 305mm Mitre Saw is engineered for repeatable accuracy with dual horizontal rails and a stainless steel detent plate with common angles at 0, 15, 22.5, 31.6, 35.3 and 45 degrees, the 1675 watt motor also offers a maximum cutting capacity of 305 x 77mm. Other features include XPS crosscut positioning system for the ultimate in accuracy and visibility with no calibration needed and machined side handles for increased portability on site.

Lever-action keyless blade clamp for quick and easy blade changing

Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° - 50° left and 0° - 60° right

New quick release bevel stop setting provides accurate and simple setting of bevel angles up to 49° left and right

The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications

Linear horizontal rails utilise bronze guides to provide maximum precision when cutting materials up to 345 mm wide

XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required

The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles
